Specifications
- MPN
- 1031140, 103-1140, 1038323, 103-8323, 1038075, 103-8075, 1033200, 103-3200, 1033206, 103-3206, 103-1105, 1031105
- Mpn
- 1031140, 103-1140, 1038323, 103-8323, 1038075, 103-8075, 1033200, 103-3200, 1033206, 103-3206, 103-1105, 1031105
- Type
- Spindle
- Brand
- Caltric
- Color
- Silver
- Model
- LHP4420 LHP4421
- Voltage
- 12 V
- Material
- Aluminum
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- For More Information Reffer to Description and Compatibilty Table
- Horsepower
- 18 HP
Description
Premium Quality Replacement Part

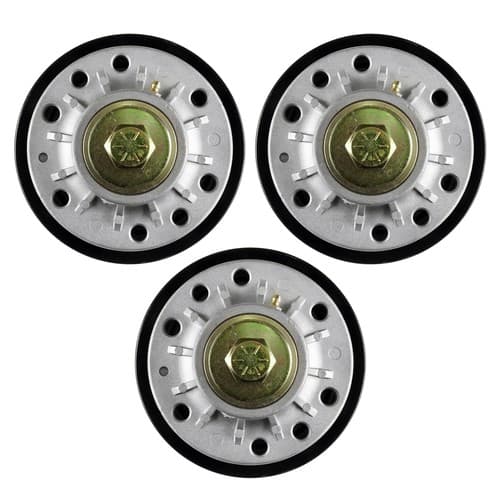

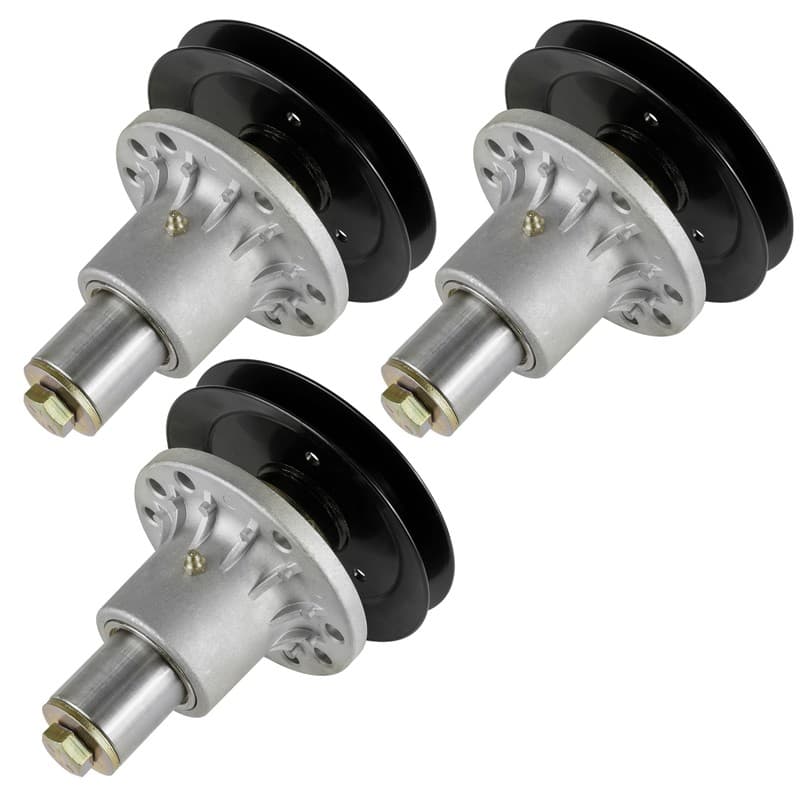

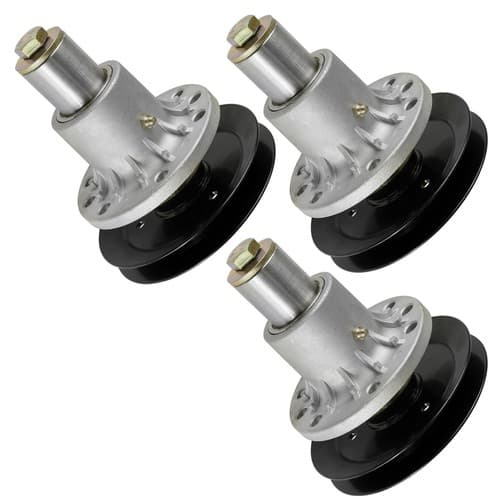

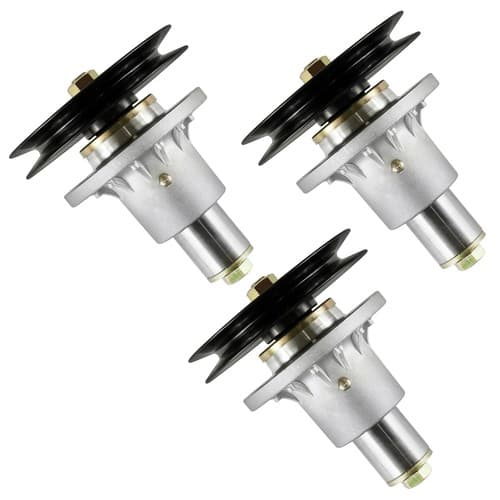

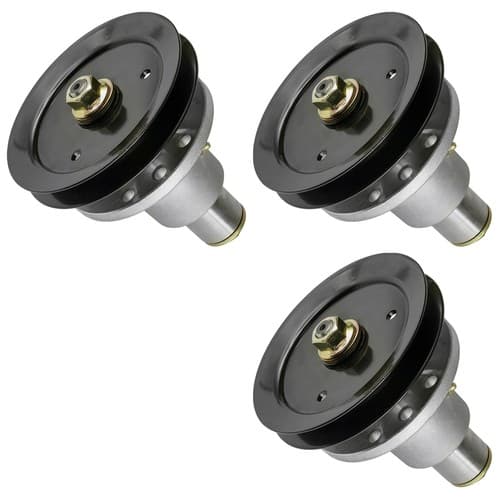

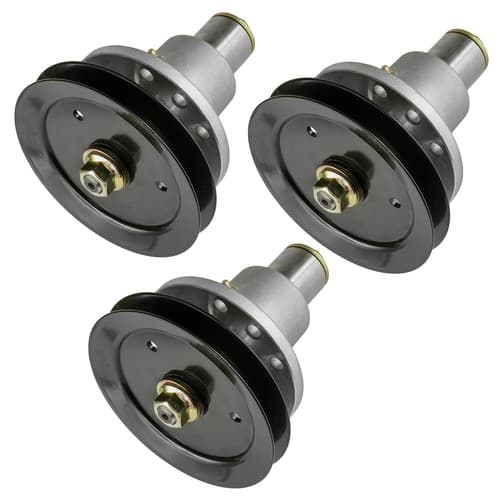

Spindle Assembly with Pulley
Compatible with Exmark Models:
Lazer Z HP Zero-Turn Mower Models:
Fmd524 - 52"" (Sn: 370000 - 599999) (2003-2005)
Fmd604 - 60"" (Sn: 370000 - 599999) (2003-2005)
Lhp4417ka - 44"" 17hp Kaw. (Sn: 260000 - 369999)
Lhp4419ka - 44""19hp Kaw. (Sn: 260000 - 319999)
Lhp4420kc - 44"" 20hp Koh. (Sn: 320000 - 369999)
Lhp4818kc - 48"" 18hp Kohl. (Sn: 260000 - 319999)
Lhp4820kc - 48"" 20hp Kohl. (Sn: 320000 - 369999)
Lhp4821ka - 48"" 21hp Kaw. (Sn: 260000 - 369999) (2001-2002)
Lhp5220kc - 52"" 20hp Kohl. (Sn: 320000 - 369999)
Lhp5223ka - 52"" 23hp Kaw. (Sn: 260000 - 369999)
Lz20kc524 - 52"" 20hp Kohl. (Sn: 370000 - 439999)
Lz23kc524as - 52"" 23hp Kohl. (Sn: 510000 - 539999) (2005)
Lz23kc604 , Lz25kc604 - 60"" 23hp Kohl. (Sn: 510000 - 539999) (2005)
Lz23kc604 , Lz27lka604 - 60"" 23hp Kohl. (Sn: 370000 - 509999) (2003-2004)
Lz23kc604as - 60"" 23hp Kohl. (Sn: 440000 - 509999) (2004)
Lz25kc524 - 52"" 25hp Kohl. (Sn: 510000 - 539999) (2005)
Lz26kc604 - 60""/ Lz26kc724 72"" 26hp Kohl. (Sn: 370000 - 509999) (2003-2004)
Lz27dd604 - 60"" 27hp B&S (Sn: 320000 - 509999) (2002-2004)
Lz27dd604 , Lz27kc604, Lz27lka604 - 60"" 27hp B&S (Sn: 510000 - 539999) (2005)
Lz27dd604, Lz27kc604, Lz27lka604, Lz27lka604, Lz27kc604 - 60"" 27hp (Sn: 510000 - 539999) (2005)
Lz27dd724 , Lz27kc724 , Lz27lka724 - 72"" 27hp (Sn: 370000 - 539999) (2003-2005)
Lz27kc524 - 52"" 27hp Kohl. (Sn: 370000 - 539999) (2003-2005)
Lz27kc724 , Lz27lka724 , Lz28kc724, Lz27dd724 72"" 27hp Kohl. (Sn: 510000 - 539999) (2005) ( 27hp )
Lz27lka604 , Lz27dd604, Lz27kc604 - 60"" 27hp (Sn: 370000 - 509999) (2003-2004)
Lz28kc604 - 60"" 28hp Kohl. (Sn: 510000 - 539999) (2005)
Lz28kc604 , Lz31bv604 , Lz23kc604 , Lz25kc604 60"" (Sn: 510000 - 539999) (2005)
Lz28kc724 - 72"" 28hp Kohl. (Sn: 510000 - 539999) (2005)
Lz31bv604 - 60"" / Lz31bv724 - 72"" 31hp B&S (Sn: 440000 - 509999) (2004)
Lz31bv604 - 60"" 31hp B&S (Sn: 540000 - 599999) (2005)
Lz31bv724 - 72"" 31hp B&S (Sn: 510000 - 599999) (2005)
Tr23kc - 20hp Kohl. (Sn: 510000 - 599999) (2005) - 52"" (S/N 510,000 - 539,999)
Tt20kcc - 20hp Kohl. (Sn: 510000 - 599999) (2005) - 52"" (S/N 510,000 - 539,999)
Tt23kac - 23hp Kaw. (Sn: 510000 - 599999) (2005)
Order Includes:
3x Spindle with Pulley: 1031140, 1038323, 1038075, 1033200,
1033206, 103-1105, 103-3206, 103-8323

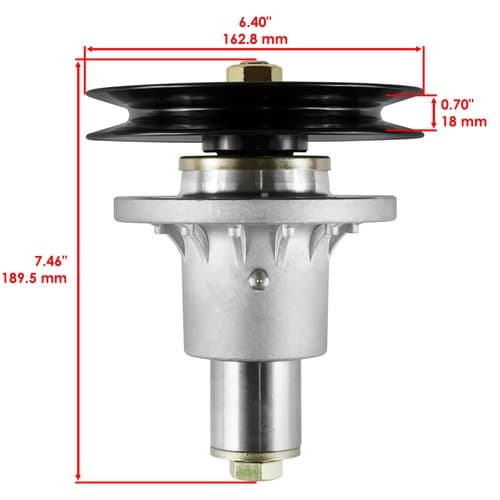

Length: 162.8 mm - 6.4 in
Width: 18 mm - 0.7 in
Height: 189.5 mm - 7.46 in

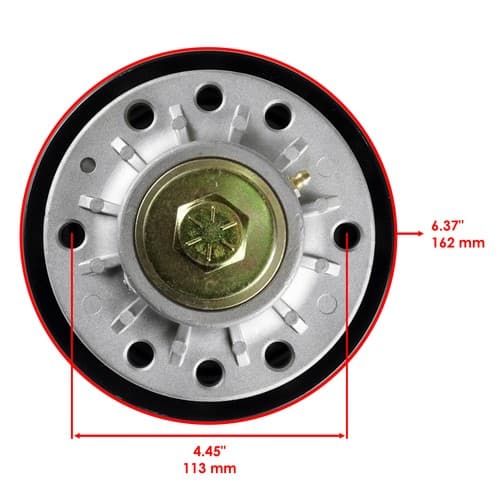

Mounting Hole Distance: 113 mm - 4.45 in
