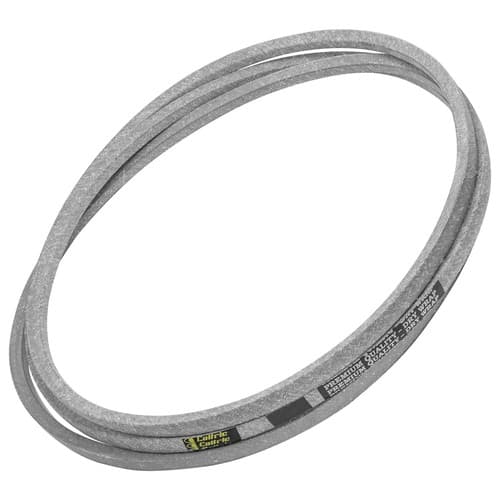

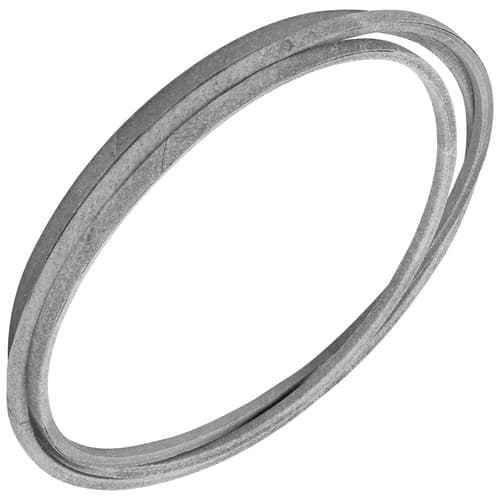

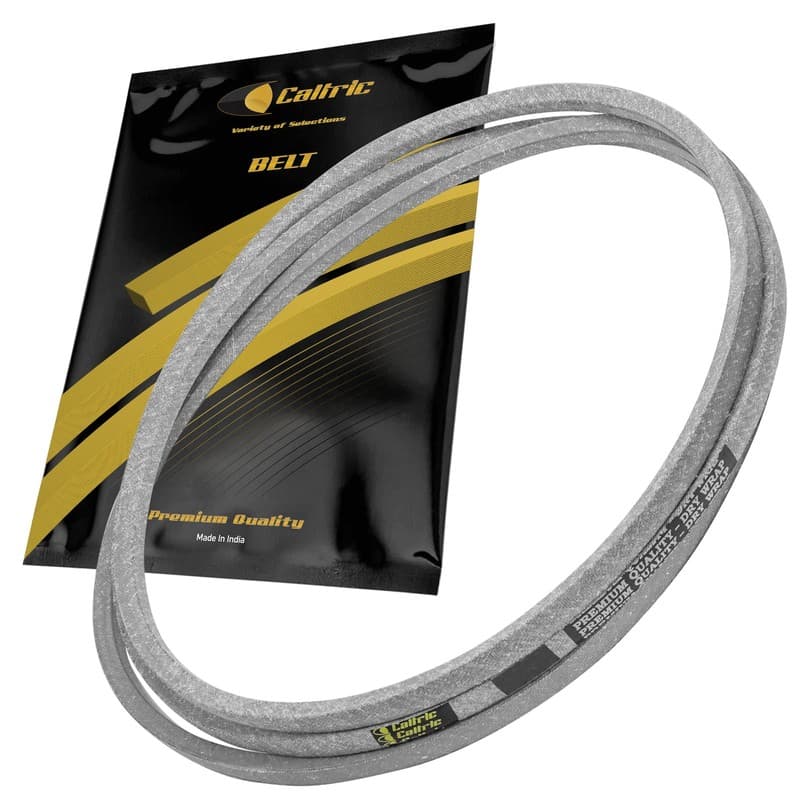

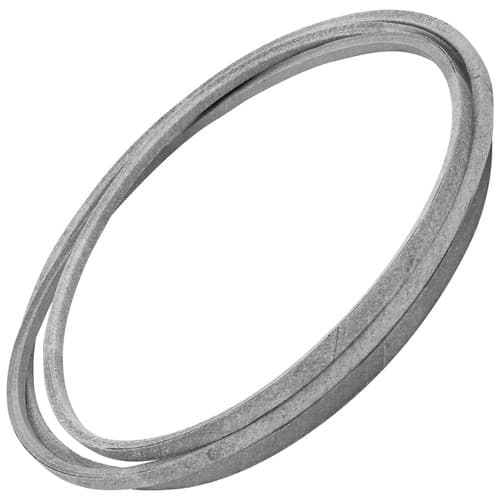

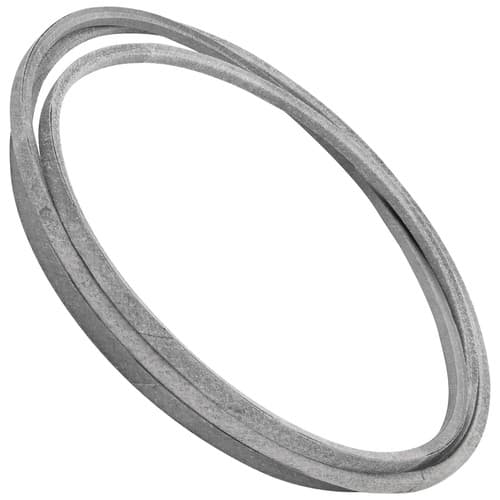

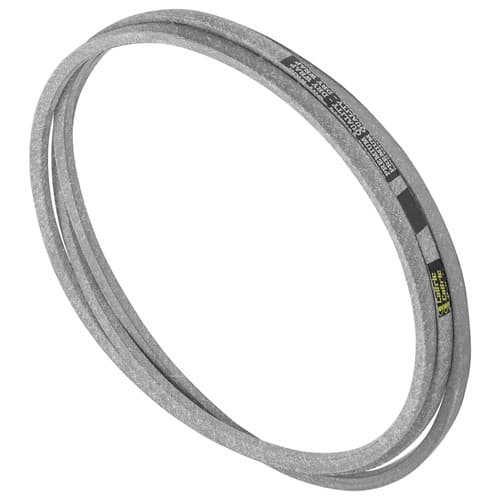

5103871 1522061 5103391 5103671 5103871 Belt for Snapper Ferris Toro Simplicity

Deck Belt

Compatible with Scag Models:

SMTC-61A - Tiger Cub 61"  (SN: 8470000 - 8479999)

SMWC-61A - Wildcat 61"  (SN: 9340001 - 9349999)  (SN: A5700001 - A5799999)

STC61A-23KA - Tiger Cub 61" , 23hp (SN: 8770000 - 8779999)

STC61A-25KA - Tiger Cub 61" , 25hp (SN: 8440000 - 8449999)

STWC61A-27CV - Wildcat 61", 27hp (SN: 9660001 - 9669999)  (SN: A5600001 - A5699999)

Compatible with Toro Models :

74410 (Z 400) - 52" (SN: 250000001 - 250007000  260000001 - 260999999)

(270000001 - 270999999) (2005-2007)

74412 (Z 400) - 48" (SN: 250000001 - 250999999  260000001 - 260999999) (2005-2006)

74413 (Z 449) - 48" (SN: 250000001 - 250999999  260000001 - 270999999) (2005-2007)

74414 (Z 450) - 52" (SN: 250000001 - 250999999  260000001 - 260999999) (2005-2006)

74415 (Z 449) - 52" (SN: 250000001 - 250999999) (2005)

74416, Z450 2008 (SN 280000001-280999999) - 52"

74416, Z453 2005-2006 (SN 250000001-260999999) - 52"

74417, Z453 2005-2006 (SN 250000001-260999999) - 48"

74417CP, Z450 2008 (SN 280000001-280999999) - 48"

74418, Z400 2007 (SN 270000001-270001000) (SN 270002001-270999999) - 48"

Compatible with Simplicity Models:

3000 (5900509) (5900530) - 52"

5900522 5900954 - Citation 52" 26hp

5900523 -  Citation 52" 23hp

5901561 - Contender 52" 25hp

2690367 2690371 - Stallion 61"

2690479 - Cobalt 61" 27hp

2950 (5901288) - 61" 25hp

5900524 - Citation 61", 28hp

5900525 - Cobalt 61" , 30hp

5900526 - Cobalt 61" 26hp

5900527 - Cobalt 61" , 32hp

5900763 5900819 - Cobalt 61" , 30hp

5900764 5900821  - Citation 61" 28hp

5901227 5901259 - Citation XT 61" , 28hp

5901463 - Contender 61"  25hp

5901744 - Contender XT 61", 24hp

ZT 2561 - Stallion 61" , 25hp

ZT 2761 F - Stallion 61", 27hp

2690367 Stallion, 25Hp 61"

2690371 Stallion, 27Hp 61"

ZT2561F , 25Hp 61"

ZT2761F Stallion, 27Hp 61"

5900524 5900764 5900821 5901227 Citation , 28Hp  61"

2690479 Cobalt, 27Hp  61"

5900525 5900763 5900819 Cobalt, 30Hp  61"

5900526 Cobalt, 26Hp  61"

5900527 Cobalt, 32Hp  61"

5901259 Citation Xt 61" 27hp

5901463 Contender 61" 25hp

Compatible with Ferris Models :

1000Z (5901003) - 1000Z Series 61" 27hp (SN: 2898 & Below)

DDSH61 (5900223) - 61"

F 320Z (5901523  5901524) - 61"

IS 1500ZX (5900535) - 61" , 24hp

IS 1500ZX (5900572) - 61", 28hp

IS 2000Z (5900536  5900537) - 61" , 30hp

F 150XT (5900517) - F150XT 52" 26hp

F 150XT (5900565) - F150XT 52" 24hp

F 160Z (5901518  5901519  5901686) - F160Z Series 52"

FW 35 (5901318  5901326 5901363 ) - FW35 61" 24hp

FW 35 (5901365  5901451) - FW35 61" 26hp

FW 35 (5901366  5901420  5901452  5901601) - FW35 61" 28hp

FW 45 (5901885) - 61" 28hp

Compatible with Snapper Models:

S 150XT (5900508) - Pro S150XT 52" 22hp

S 150XT (5900564  5901290  5901487 ) - Pro S150XT 52" 24hp

S 150XT (5900574  5901397  5901399  5901485  5901489) - Pro S150XT 52" 28hp

SW 35 (5901232) - Pro SW35  61"

560Z (5901556  5901557 ) - 52" 24hp 25 hp

S 120 (5901862  5902115) - Pro S120 61"  25hp

S 120 (5901868) - Pro S120 61"  24hp

S 125XT (5901248  5901376  5901632  5901788) - Pro S125XT 61" , 27hp

S 125XT (5901249  5901421  5901631  5901786) - Pro S125XT 61" , 24hp

S 125XT (5901506  5901633 ) - Pro S125XT 61" , 26hp

550Z (B 2561) (5901252  5901402) - 61", 25hp

Order Includes :

1 x Belt : 1522061, 22061, 5022061, 5103391, 5103671, 5103871, 5103872

 5103391, 5103391YP , 482652 , 106-7369 , 265-189

Height : 5/8"

Width : 11.32mm - 0.44"

Overall Length : 4470.5mm - 176"
